Non Functional Requirements(NFRs)

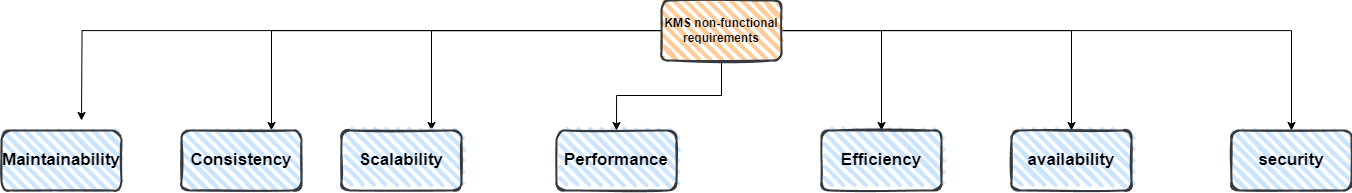

• This section details into the non-functional requirements of the project take a graze into the picture below, but some of the things will be refined as a project gets bigger.

Security

• Implementation of the security into the website for securing the website using various methods such as using jwt json web token to secure the website also by using the jwt it ensures that after the user jas logs into the website we create a token each time a user has logged into a website to prevent user from common attacks, also the use of bcrpy library ofr securing the database whereby user data such as password are encrypted to prevent any attacks that might affect the performance of the website.

Consistency

• By implementing common procedures into the project such as the use of common project structure by following the MVC pattern into the project also the use of Njox A-Z approach into the project makes the project modular.

• project root

📂 Project Root
/apps
|-- .github
│── /client        # Frontend (React)
│── /server        # Backend (Express & MongoDB)
│── /infra
│── /public
│── /tests
│── /config        # Environment & config files
│── /scripts       # Automation scripts (optional)
│── .gitignore
│── package.json
│── README.md
│── .env
│── Dockerfile

• frontend

🖥 Frontend (React) Structure
/client
│── /public         # Static assets (favicon, manifest)
│── /src
│   │── /assets     # Images, icons, fonts, etc.
│   │── /components # Reusable components
│   │── /context    # Global state/context API
│   │── /hooks      # Custom hooks
│   │── /layouts    # Page layouts (Navbar, Sidebar)
│   │── /pages      # Page components (Home, Dashboard)
│   │── /routes     # App routing (React Router)
│   │── /services   # API calls & business logic
│   │── /store      # Redux/Zustand store (if used)
│   │── /utils      # Helper functions
│   │── App.jsx     # Root component
│   │── index.js    # React entry point
│── .env           # Frontend environment variables
│── package.json   # Frontend dependencies
│── vite.config.js # Vite config (if using Vite)

• 🌍 Backend (Express & MongoDB) Structure

/server
│── /
│   │── /config       # DB connection & environment configs
│   │── /controllers  # Business logic for API endpoints
│   │── /middleware   # Authentication & error handling
│   │── /models       # Mongoose schemas & models
│   │── /routes       # Express route handlers
│   │── /services     # External API calls, email, etc.
│   │── /utils        # Utility functions
│   │── app.js        # Express app setup
│   │── server.js     # Server entry point
│── .env             # Backend environment variables
│── package.json     # Backend dependencies
│── nodemon.json     # Auto-restart config (for dev)

Maintainability

• By using the common folder structure into the project ensures the project is modular and easier for maintaining.

tabular

Non-Functional Requirements

Non-Functional Requirements (NFRs)

This document outlines the system's quality attributes, performance benchmarks, and operational constraints.

📌 Table of Non-Functional Requirements

Category	Requirement	Expected Value	Validation Method	Tools Used
Performance	API Response Time	< 200ms per request	Load Testing	JMeter, k6
Performance	Page Load Time	< 2s	Lighthouse Audit	Google Lighthouse, WebPageTest
Scalability	Concurrent Users	Handle 1000+ users	Stress Testing (Simulated Load)	Locust, k6
Availability	System Uptime	99.9% uptime	Monitoring & Alerts	Grafana, Prometheus
Security	Data Encryption	AES-256 for storage, TLS for transmission	Security Audit	OWASP ZAP, Burp Suite
Security	Authentication & Authorization	JWT & OAuth 2.0	Penetration Testing	OWASP ZAP, Postman
Usability	Mobile Responsiveness	Fully responsive UI	UI Testing	BrowserStack, Percy
Compliance	GDPR Compliance	User consent & encryption	Security Audit	Manual Review, Compliance Checklists
Maintainability	Code Documentation	Clear API & system docs	Manual Review	MkDocs, Swagger
Reliability	Error Recovery	Auto restart on failure	System Logs & Alerts	ELK Stack, Sentry

🔍 Detailed Explanations

1. Performance Requirements

• API Response Time: The system should handle API requests within 200ms under normal load conditions.
• Page Load Time: The frontend must load in less than 2 seconds on a standard broadband connection.
• Tools Used: We use JMeter for API performance testing and Google Lighthouse for page speed analysis.

2. Scalability Requirements

• The system should scale to 1000+ concurrent users with auto-scaling enabled.
• Load testing will be performed using Locust and k6.

3. Security Requirements

• Data Encryption: All sensitive data must be encrypted using AES-256 at rest and TLS 1.2+ for transmission.
• Authentication & Authorization: Implement JWT-based authentication and OAuth 2.0 for secure access control.
• Tools Used: We use OWASP ZAP and Burp Suite for security audits.

4. Availability & Reliability

• System must maintain 99.9% uptime, with automatic failover for critical services.
• Error logging & monitoring will be handled using Sentry and ELK Stack (Elasticsearch, Logstash, Kibana).

5. Compliance & Maintainability

• The system must be GDPR-compliant, ensuring user consent before data collection.
• API documentation should be maintained using Swagger and system documentation with MkDocs.

---

🚀 Version Control & Updates

• This document will be versioned using Git for tracking updates.
• All changes will follow a review process before being approved.
• Next review: [Insert Date]

---

📂 Where to Find This Document?

• 📄 Location in MkDocs: docs/system-design/non-functional-requirements.md
• 🛠 Live Version (if hosted): your-docs-site.com/nfr

---

🔥 Why This Format?

✔ Markdown format keeps it lightweight and easy to version in Git.
✔ Tables with tools & validation make it actionable for devs & testers.
✔ Linking to relevant docs improves navigation in your MkDocs setup.
